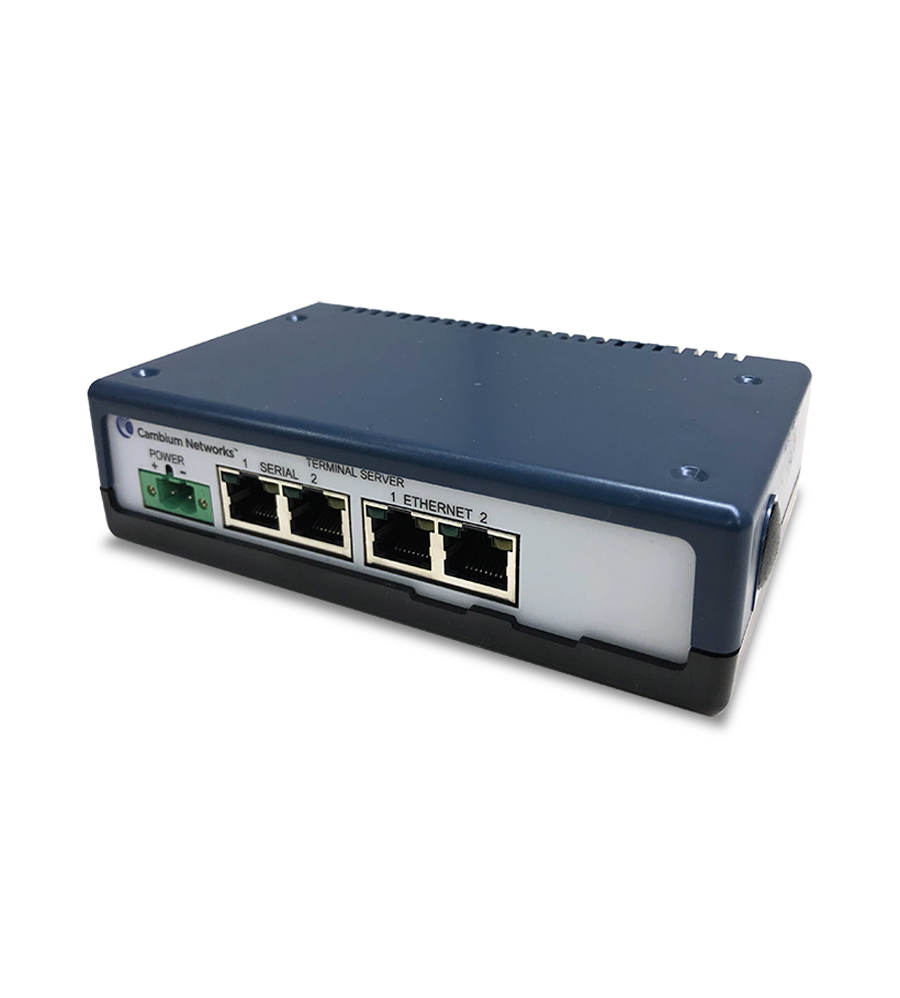

Cambium Networks cnReach Terminal Server
Add Serial to TCP/IP conversion on any wireless or wired broadband network

Cambium Networks Products

cnReach Terminal Server

cnReach Terminal Server Two Serial Port

#NB-N500082A-UK
Our Price: Request a Quote

Get a Quote

Power Supply, AC to 24VDC, DIN RAIL MOUNT

#NB-N500013A-GL
List Price: £162.10
Our Price: Request a Quote

Click here to jump to more pricing!

Please Note: All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.

Overview:

The cnReach Terminal Server delivers serial to Ethernet conversion enabling the addition or integration of serial connectivity to any wired or wireless TCP/IP network. In addition to serial connectivity, the terminal server supports MODBUS polling at the edge that can be published via MQTT. Finally, the cnReach Terminal Server is managed with cnMaestro providing a single pane of glass management across the network.

Features:

Add Serial to TCP/IP conversion on any wireless or wired broadband network
Single Pane of Glass Management
Monitor/Configure devices remotely using cnMaestro
Flexible configuration enables integration with most serial-based devices in the field today
Integrated MODBUS TCP to MODBUS RTU Conversion
Supports TCP or UDP traffic and Server or Client modes

Daisy-chain multiple units to add more serial ports
MQTT Publish/Subscribe Integration
Reduce traffic by up to 90% vs. traditional polling
Make data available across entire organization
Integrated local MODBUS Polling at the edge
Data Concentrator applications to reduce polling
PLC Local Logic to add intelligence at the edge

Specifications:

Management
	Web-based Interface via HTTP/HTTPS
	Remote Management via SNMP
	User Login Authentication using RADIUS
	cnMaestro integration
	Support for configuration files, remote software upgrades
Data Capabilities
Packet Handling	Layer 2 bridge and/or Layer 3 static routes VLAN support
Modes	TCP Terminal Server, TCP Terminal Client, UDP Terminal, Multicast Terminal
Other	MODBUS Bridge (MODBUS TCP to MODBUS RTU conversion) Data Concentrator (converges data from multiple MODBUS sources into single polling MODBUS map) MQTT (publish/subscribe data); Sparkplug B compliant
Interfaces
Ethernet Interfaces	2 x RJ-45 10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant)
Environmental
Operating Temperature	-40 C to +85 C (-40 F to 185 F)
Humidity	95% operating humidity @ 40C non-condensing
HAZLOC	Pending Approval to UL Class 1 / Div 2

Documentation:

Download the Cambium Networks cnReach Datasheet (.PDF)

Pricing Notes:

All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.
Pricing and product availability subject to change without notice.
