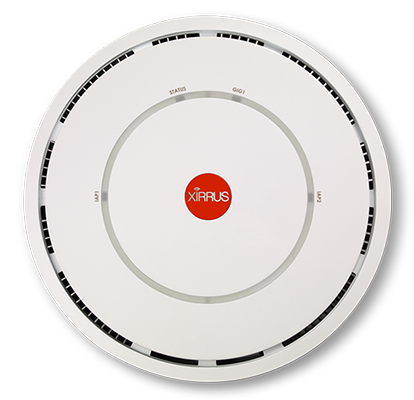

Cambium Network Xirrus X2-120 Indoor Access Points
Performance That Leads the Industry

Benefits:

Cambium Network Xirrus Access Point (AP) solutions deliver a superior Wi-Fi experience for today's connected world using a scalable, adaptive platform that protects your investment. Ideal for offices, classrooms, hotels, hospitals, and similar organizations, Cambium Network Xirrus APs provide the most flexible, cost-effective solution for small-to-large enterprise networks.

Fast and Flexible

Cambium Network Xirrus APs deliver industry-leading Wi-Fi performance, providing 100% high-speed 11ac Wave 1/Wave 2 connections and 2x the bandwidth of competitive APs. Cambium Network Xirrus Wi-Fi solutions can instantly boost performance with the click of a mouse to adapt to changing client devices and optimize the user experience. E

Easy to Deploy

Cambium Network Xirrus APs simplify integration with existing network infrastructure using plug-and-play simplicity. Zero-touch provisioning and automatic RF configuration, enable secure and reliable Wi-Fi service in minutes with minimal IT effort.

Simple to Manage

Cambium Network Xirrus APs include a comprehensive set of tools that allow user, device, application, and traffic management with complete visibility. The Cambium Network Xirrus Management System (XMS) operates from the cloud or on-premise from a single console.

Predictable Performance

Performance is predictable with deep packet inspection (DPI) technology which provides complete application visibility within the AP at the network's edge. Over 1,400 applications or groups of applications can be prioritized, blocked or throttled. Policies can be scheduled by device type, user group, SSID, or across the entire network on specified times or days.

Automated Network Optimization

Cambium Network Xirrus optimizes network performance with automatic RF configuration. Cambium Network Xirrus APs automatically choose optimal channels, bands, and power levels without IT intervention. Cambium Network Xirrus APs also customize client connectivity through device-fingerprinting to maximize performance based on device capability.

Simplified Access Management

Cambium Network Xirrus EasyPass Access Services, a free service integrated within Cambium Network Xirrus Management System-Cloud (XMS-Cloud), provides a highly secure, single dashboard solution to to simplify the process of connecting users to the network, including self-provisioned access for guests and easy onboarding of BYOD devices for employees.

Specifications:

With a powerful integrated controller, application level intelligence, zero-touch provisioning, and available cloud-based network management, Cambium Network Xirrus X, XR, XD series Access Points provide powerful Wi-Fi solutions for environments including classrooms, offices, hospitals, hotel rooms, and more. Cambium Network Xirrus Access Points are backward compatible and the latest model supports 802.11ac Wave 2 with Multi-User MIMO. Cambium Network Xirrus APs feature dual software programmable radios that deliver twice the number of 802.11ac radios compared to standard APs.

Configuration Specifications

	XR-500	X2	XR-600	XD2
Chassis Dimensions	7.7” Diameter, 2” H	8” Diameter, 1.82”H	7.7” Diameter, 2” H	8” Diameter, 1.82”H
Supported Standards	802.11a/b/g/n	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n/ac (Wave 2)
Total Number of Radios	2	2	2	2
Radio Type	2x2, 300Mbps	2x2, 867Mbps	XR-620: 2x2, 867Mbps XR-630: 3x3, 1.3Gbps	4x4, 1.733Gbps
MIMO Technology	SU-MIMO	SU-MIMO	SU-MIMO	MU-MIMO
Maximum Wi-Fi Bandwidth	600Mbps	1.1Gbps	XR-620: 1.7Gbps XR-630: 2.6Gbps	3.47Gbps
Wi-Fi Threat Sensor	Yes	Yes	Yes	Yes
Maximum Wi-Fi Backhaul	300Mbps	867Mbps	XR-620: 867Mbps XR-630: 1.3Gbps	1.733Gbps
Maximum Associated Devices	480	254	390	390
Wired Uplinks: 802.3ad (Aggregate traffic), broadcast, link-backup (failover), load balancing	1GbE	1GbE	2-1GbE	2-1GbE
Maximum Power Consumption	12.5W	12.5W (PoE)	25.5W (PoE+)	25.5W (PoE+)
Weight	1lb	2lbs	1.6lbs	1.8lbs
RF Management	Dynamic channel configuration Dynamic cell size configuration Monitor radio for threat assessment and mitigation Wired and Wireless RMON / Packet Captures Radio assurance for radio self test and healing		RF monitor 2.4 & 5Ghz Honeypot Control - Increase available 2.4 & 5Ghz wireless device density through management of spurious 2.4 & 5Ghz association traffic. Re-use and increase wireless device density through tight power controls.
High Availability	Supports hot stand-by mode for mission critical areas
Environmentally Friendly	Supports ability to turn off radios based on schedule configuration
Wireless Protocols	IEEE 802.11a, 802.11ac+, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11u, 802.11w
Wired Protocols	IEEE 802.3 10BASE-T, IEEE 802.3.u 100BASE-TX , 1000BASE-T, 802.3ab 1000BASE-T IEEE 802.1q - VLAN tagging IEEE 802.1AX - Link aggregation IEEE 802.1d - Spanning tree IEEE 802.1p - Layer 2 traffic prioritization IPv6 Control - Increase wireless device density through control of unnecessary IPv6 traffic on IPv4-only networks. DHCP option 82
Carrier Applications	Passpoint 2.0 Certification
RFC Support	RFC 768 UDP RFC 791 IP RFC 2460 IPV6 (Bridging only) RFC 792 ICMP RFC 793 TCP		RFC 826 ARP RFC 1122 Requirements for internet hosts - communication layers RFC 1542 BOOTP RFC 2131 DHCP
Security	WPA IEEE 802.11i WPA2, RSN RFC 1321 MD5 Message-digest algorithm RFC 2246 TLS protocol version 1.0		RFC 3280 Internet X.509 PKI certificate and CRL profile RFC 4347 Datagram transport layer security RFC 4346 TLS protocol version 1.1
Encryption Types	Open, WEP, TKIP-MIC: RC4 40, 104 and 128 bits SSL and TLS: RC4 128-bit and RDA 1024 and 2048 bit
Authentication	IEEE 802.1x RFC 2548 Microsoftvendor-specific RADIUS attributes RFC 2716 PPP EAP-TLS RFC 2865 RADIUS Authentication RFC 2866 RADIUS Accounting RFC 2867 Tunnel Accounting RFC 2869 RADIUS Extensions RFC 3576 Dynamic Authorizations extensions to RADIUS RFC 3579 RADIUS Support for EAP RFC 3748 EAP-PEAP		RFC 5216 EAP-TLS RFC 5281 EAP-TTLS RFC 2284 EAP-GTC RFC 4186 EAP-SIM RFC 3748 Leap Passthrough RFC 3748 Extensible Authentication Protocol Web Page Authentication • WPR, Landing Page, Redirect • Support for Internal WPR, Landing Page and Authentication • Support for External WPR, Landing Page and Authentication • Support for Cambium Network Xirrus Guest Access System
Regulatory Compliance	CE Mark EU CE Mark EN300 328 V1.8.1, EN 301 893 V1.7.1 EN 301 489-1 V1.9.2, EN 301 489-17 V2.2.1 EN55022/EN55024 US FCC Part 15 subparts B, C, E FCC [47 C.F.R. 1.1307(b), 1.1310, 2.1091, 2.1093] Canada ICES-003 Canada RSS-247 Canada RSS-102		Safety UL60950-1 2nd Edition CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12 EN 60950-1:2006/A2:2013 IEC 60950-1:2005/A2:2013 EN 60950-22:2006+AC:2008 (Outdoor Untis) UL60950-22 ( Outdoor Units) CSA C22.2 No 60950-22-07 (Outdoor Units)
Environmental Specifications	Operating Temperature: 0-55C, 0-90% humidity, non-condensing Storage Temperature: -40C to 70C
Channel Support 2.4GHz (Channel selections are based upon country code selections)	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
Channel Support 5GHz (Channel selections are based upon country code selections)	U-NII-1 - Non-DFS channels 36 40 44 48 U-NII-2A DFS channels* 52 56 60 64		U-NII-2C DFS channels* 100 104 108 112 116 120 124 128 132 136 140 144 U-NII-3 Non-DFS channels 149 153 157 161 165
Management Interfaces	Command line interface Web interface (http / https)		Cambium Network Xirrus Management System (XMS) XMS-Cloud XMS-Enterprise
Management	SNMP v1, v2c, v3 RFC 854 Telnet RFC 1155 Management Information for TCP/IP Based Internets RFC 1156 MIB RFC 1157 SNMP RFC 1212 Concise MIB Definitions RFC 1213 SNMP MIB II RFC 1215 A Convention for Defining Traps for use with the SNMP RFC 1350 TFTP RFC 1643 Ethernet MIB RFC 2030 Simple Network Time Protocol SNTP RFC 2578 Structure of Management Information Version 2 (SMIv2) RFC 2579 Textual Conventions for SMIv2 RFC 2616 HTTP 1.1 RFC 2665 Definitions of Managed Objects for the Ethernet Like Interface Types		RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering and Virtual LAN Extensions RFC 2819 Remote Network Monitoring Management Information Base RFC 2863 The Interface Group MIB RFC 3164 BSD Syslog Protocol RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) RFC 3416 Version 2 of the Protocol Operations for the Simple Network Management Protocol (SNMP) RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP) RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework RFC 3636 Definitions of Managed Objects for IEEE Cambium Network Xirrus Private MIBs Integration with Splunk for accurate search and analysis of intra- organizational IT events Netflow Export v9 and IPFIX compatibility allows for IP traffic statistics collection

+ Some features may not be available on X2 APs * Available only on 802.11ac platforms

Comparision:

Right Sized Wi-Fi For Every Use

Model	XR-320	X2	XR-600	XD2	XD4	XR-2000	XR-4000	XR-6000
Max Number of Radios	2	2	2	2	4	4	8	16
Technology	11ac Wave 1	11ac Wave 1	11ac Wave 1	11ac Wave 2	11ac Wave 1	11ac Wave 1	11ac Wave 1	11ac Wave 1
Technology Upgradable	NA	NA	NA	NA	NA	11ac Wave 2	11ac Wave 2	11ac Wave 2
TurboXpress (all radios 11ac)	NA	NA	Yes	Yes	Yes	Yes	Yes	Yes
Controller	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
Uplinks	1 GigE	1 GigE	2 GigE	2 GigE	2 GigE	2 GigE	2 GigE	4 GigE/1-10 GigE
Example Uses	Hotels / Dorms / Hospitals / Offices	Offices / Hotels / Classrooms / Retail	Offices / Classrooms / Hospitals / Retail	Dense Offices / Classrooms / Hospitals	Dense Offices / Classrooms / Conf Rooms	Dense Offices / Classrooms / Conf Rooms	Libraries / Auditoriums / Conventions	Auditoriums / Conventions / Arenas

Outdoor Wi-Fi Portfolio

Product Series	XR-520H	XH2	XR-2425H	Outdoor Enclosures / HD Access Points
Number of Radios	2	2	4	4-16
Technology	802.11n	802.11ac	802.11n	802.11ac
Technology Upgradable	NA	NA	NA	Yes - 11ac Wave 2
TurboXpress (all radios on 5GHz)	Yes	Yes	Yes	Yes
Controller	Integrated	Integrated	Integrated	Integrated
Uplinks	1 GigE	2 GigE	2 GigE	Up to 4 GigE & 1-10 GigE
Example Uses	General Coverage / Warehouses	General Coverage / Stadiums/Arenas	Outdoor Event Venues / Stadiums/Arenas	Outdoor Event Venues / Stadiums/Arenas

Documentation:

Download the Cambium Network Xirrus Indoor Access Points Product Brief Datasheet (PDF).

Download the Cambium Network Xirrus Indoor Access Points Technical Brief Datasheet (PDF).
